• Mount: Direct mini-loader 11" cradle with fixed lower hooks & reinforced top cross-bar (replaces OEM bucket linkage – no adapter needed)
• Machine compatibility: Fits most mini skid steers with standard mini quick-tach (8–11" pin centers)
• Maximum torque: 10,000 Nm (7,375 ft-lb) @ 3,500 psi
• Hydraulic motor: Eaton/Danfoss high-efficiency gerotor with integrated pressure relief valve
• Recommended flow: 12–40 GPM
• Standard output shaft: 2" hex
• Optional output shaft: 2.5" hex short hub (includes reducer sleeve for 76–89 mm / 3"–3.5" shafts)

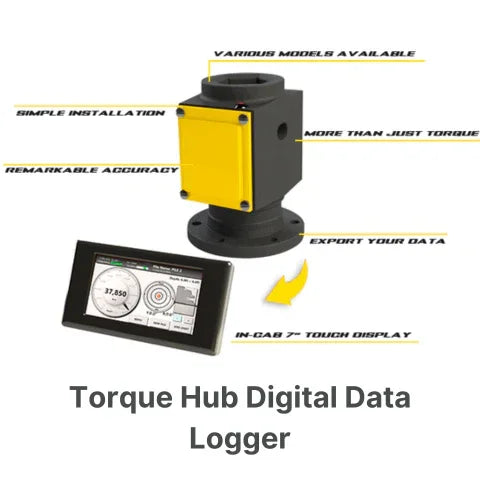

• Torque monitoring port: Integrated Kt 7–10 ft⁻¹ port for direct connection to torque hubs and data loggers (ICC-ES/ETA verification)
• Optional extensions: 300 mm or 500 mm extended reach tubes for overhead clearance or low obstacles
• Optional down-pressure kit: Adds +400 lbs of downforce for hard clay, compacted, or gravelly soils
• Frame construction: Fully hot-dip galvanized
• Warranty: 5 years on gearbox, 3 years on motor
• Certification: Approved for all ICC-ES American Ground Screw systems and European ETA ground screw systems

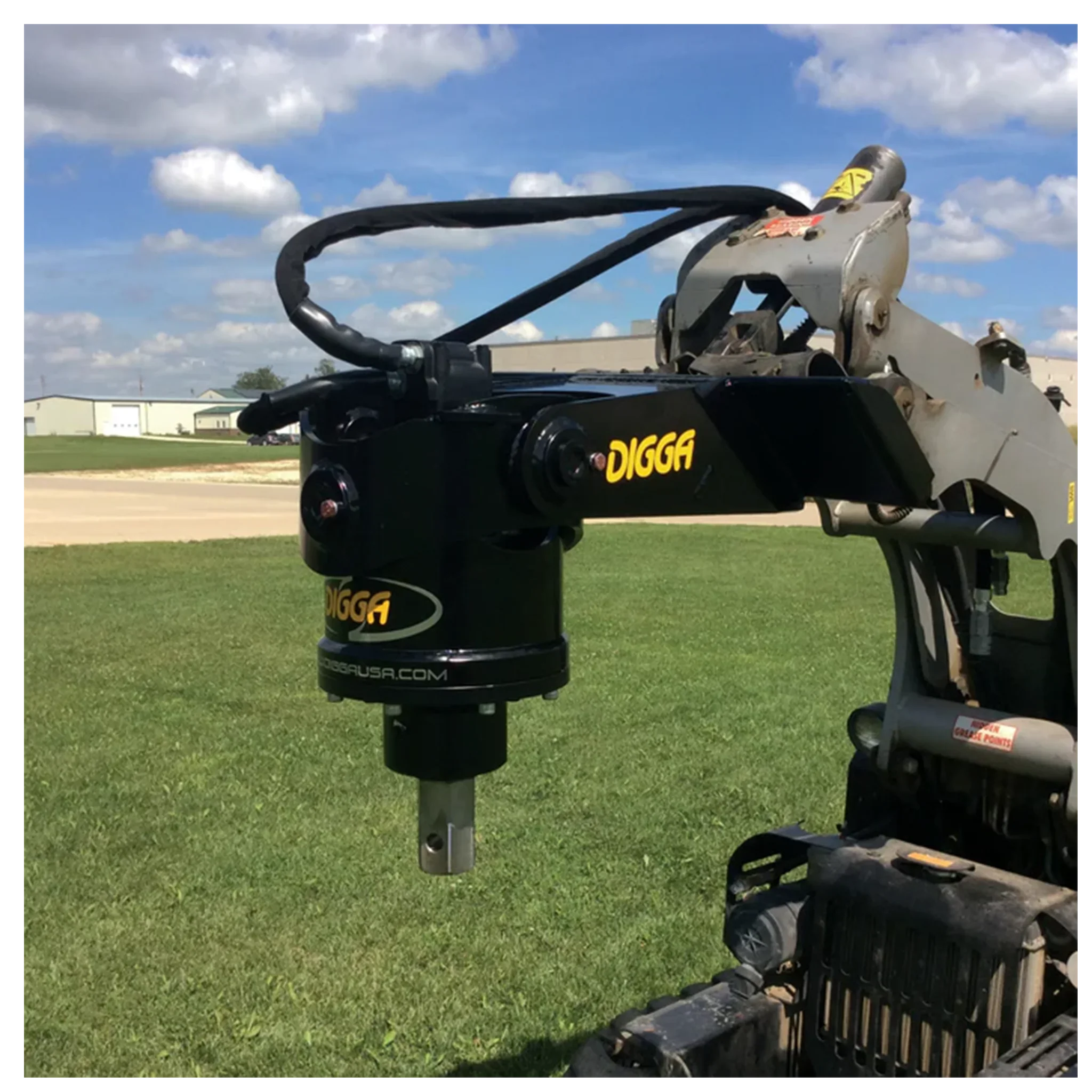

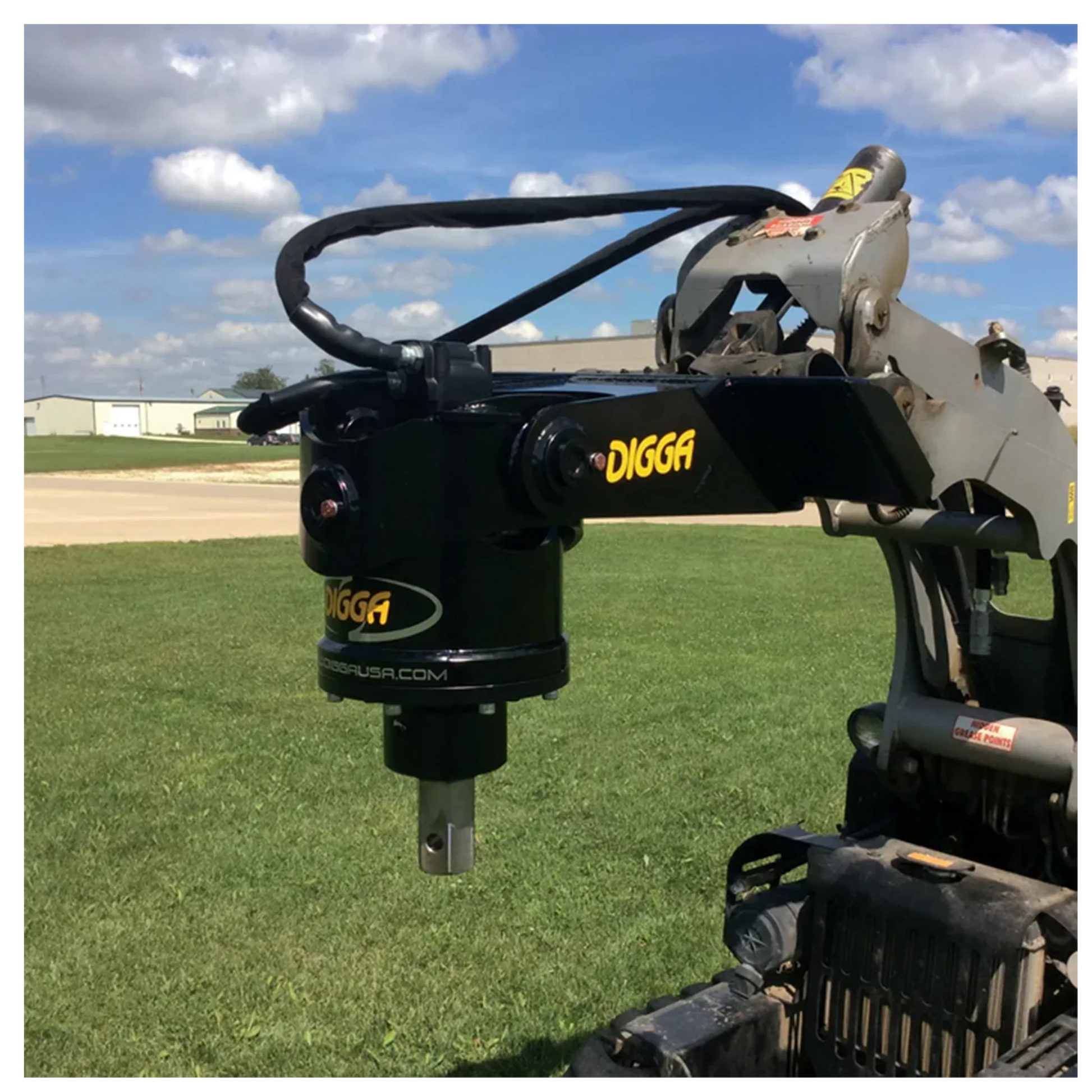

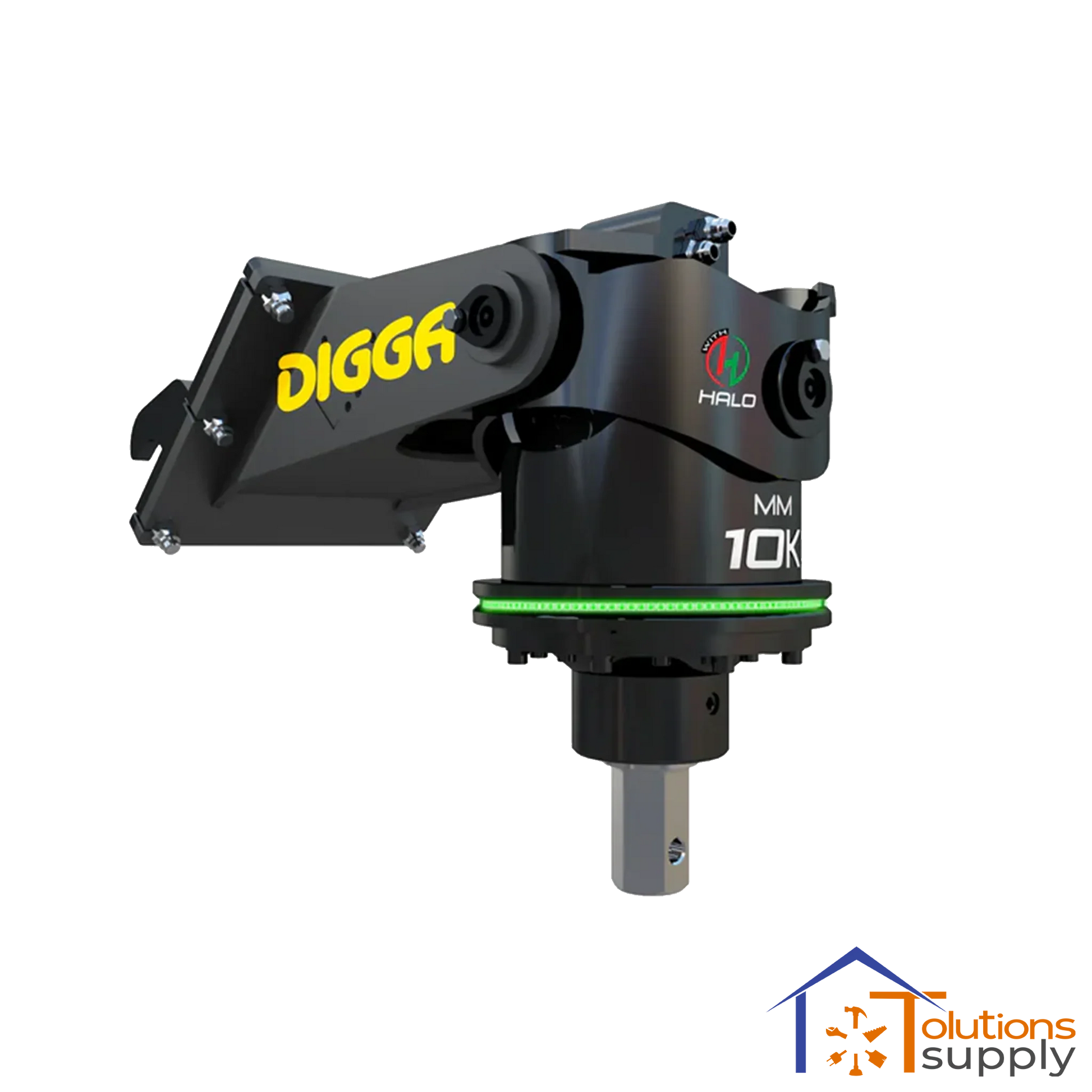

The Digga MM-10K-11-ML is a compact, high-performance auger drive specifically engineered for mini skid steers (mini loaders) with an 8–11” pin centers. The “-11-ML” version features an 11-inch mini-loader cradle with fixed lower hooks and a reinforced top cross-bar that directly replaces the machine’s standard bucket linkage – no additional frame, adapter plate, or universal mount is required.

Powered by a premium Eaton/Danfoss high-efficiency gerotor hydraulic motor with built-in pressure relief, the MM-10K-11-ML delivers up to 10,000 Nm (7,375 ft-lb) of torque in a remarkably small package. It accepts both 2" hex and 2.5" hex drive shafts (short or extended length) and is the preferred drive unit for installing 50–102 mm (2"–4") diameter ground screws in confined spaces such as residential backyards, urban solar farms, decks, retaining walls, and fence lines where larger equipment simply cannot access.Fully certified for use with all ICC-ES listed American ground screws (American Ground Screw Model 3, Patriot, GoliathConnect) and European ETA-approved systems (KRINNER, Stopper-Fundament), the MM-10K-11-ML provides verifiable, code-compliant torque and depth records for structural installations.

Materials

• Main frame and cradle: High-strength steel, fully hot-dip galvanized (ASTM A123) for maximum corrosion resistance
• Gearbox housing: Precision-machined cast iron with high-capacity tapered roller bearings
• Hydraulic motor: Genuine Eaton/Danfoss gerotor with hardened steel internals
• Pins and hardware: High-tensile zinc-plated steel
• Hoses and fittings: Heavy-duty hydraulic hoses with JIC or flat-face quick couplers (machine-dependent)

Care & Maintenance

• After each use, pressure-wash the unit to remove dirt, clay, and debris (especially from the output shaft and cradle area).
• Grease the output shaft splines and any extension tubes daily or every 8 hours of operation with a quality lithium-complex or polyurea grease.
• Inspect hydraulic hoses for abrasion or damage before each use; replace immediately if worn.
• Check gearbox oil level every 500 hours or annually (uses ISO 220 EP gear oil); change oil every 1,000 hours.
• Store indoors or under cover when not in use to preserve the galvanized finish.
• The hot-dip galvanized frame requires no painting and is highly resistant to rust even in coastal or high-moisture environments. Minor surface rust on non-galvanized components can be wire-brushed and touched up with cold-galvanizing spray if desired.

With proper care, the MM-10K-11-ML will deliver years of reliable service in the toughest residential and light-commercial ground screw installation applications.
